TM3100AK/02 Perovskite Experimental Film Applicator drawdown Bar & Blade heating Film Coater

Introduction

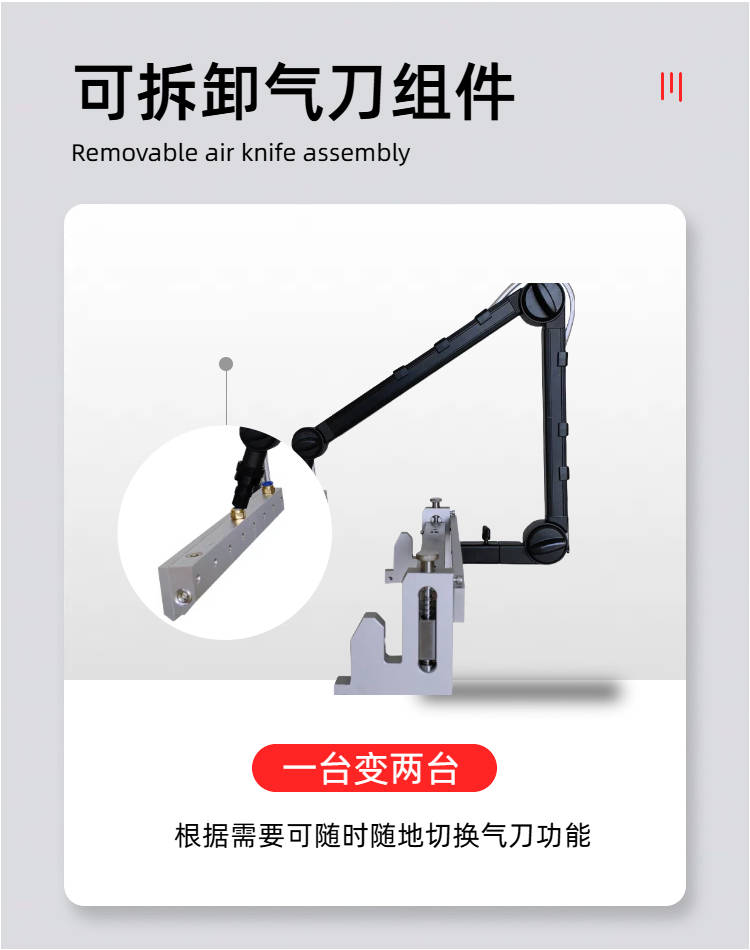

The HuiNuo TM3100AK/02 Perovskite Lab Film Applicator is designed for precision film requirements such as perovskite materials, and integrates two coating methods: bar and drawdown blade. Its outstanding feature is the specially configured High Accuracy air knife system, the air knife is placed behind the drawdown blade, and the trend gap can be controlled at 0.05mm-0.08mm. It can realize fast and uniform drying after film, effectively meeting the requirements of film formation speed and uniformity in perovskite film preparation. The equipment also has heating function (Temperature range RT +~ 180 ℃ +/- 1 ℃), with High Accuracy imported bar, Touchscreen Control system and clamshell drawdown blade for easy cleaning, which helps to improve perovskite and other new materials in scientific research and Proofing stage film Repeatability and experimental efficiency.

Product features

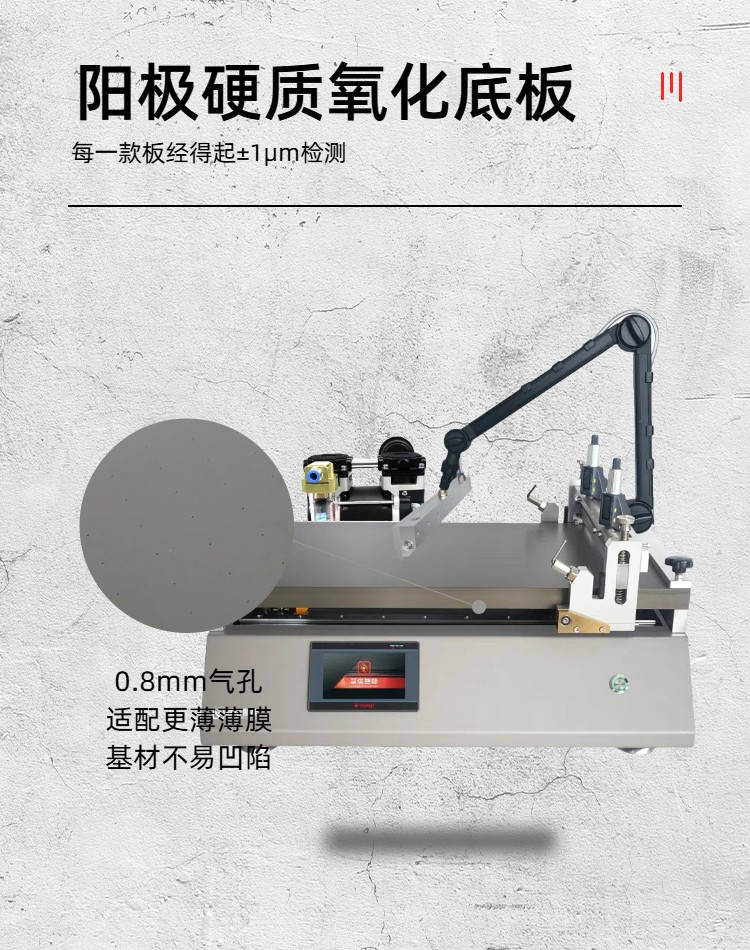

1) Surface Hard Treatment Aluminum Alloy Table, Hardness High Wear Resistance, Table Smoothness Imported High Accuracy Instrument for Testing

2) Big brand differential regulator, high film thickness control accuracy

3) Flip Type Blade Coating Head for Easy Cleaning

4) High Accuracy film applicator with high accuracy of original imported bar film

5) Touchscreen control panel, easy to operate

6) Free adjustment of application length and Spreader speed

7) With Vacuum chuck function, suitable for thin film and other soft substrate Spreader

Technical parameters
