IntroductionThe small continuous coater of HuiNuo Intelligent Laboratory is modu

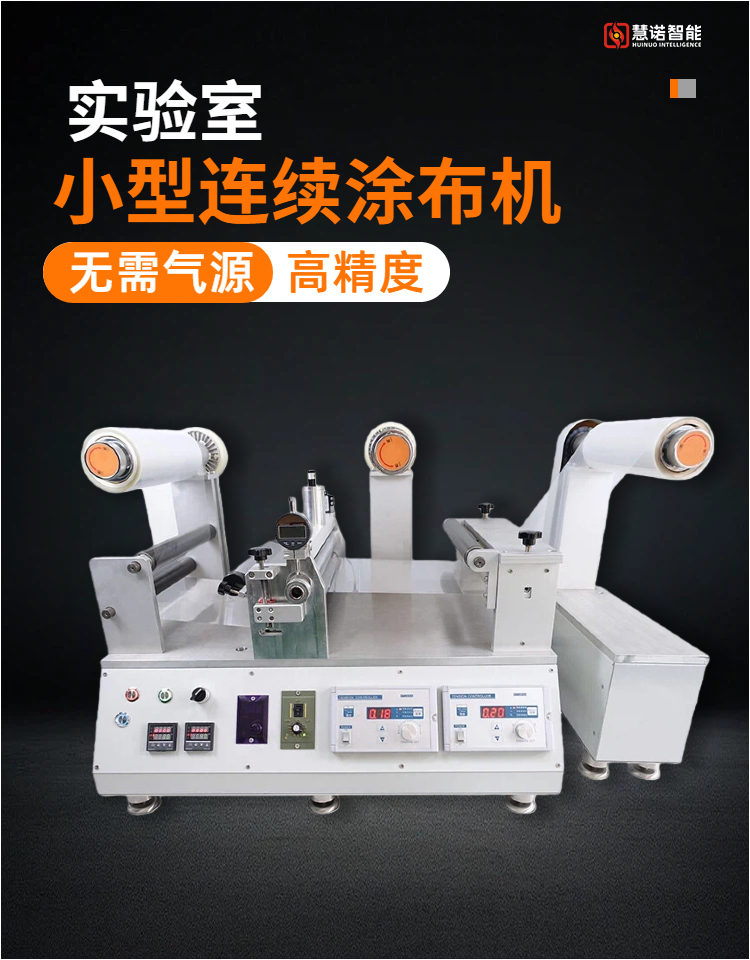

The small continuous coater of HuiNuo Intelligent Laboratory is modular assembled for the High Accuracy modular Spreader station mechanism. It can separate the winding module, and the module can be added as needed. The whole machine is fully electric control, and no gas source is required. Continuous Spreader proofing or small production laboratory mini hot-melt adhesive coater. The hot melt Pressure sensitive adhesive can be directly Spreader on the heat-resistant substrate, or Spreader on the release paper and then the film is rotated and bonded to different surfaces. It can also add a single top coating film for the curing module. Electronically controlled precision tension control can adapt to different materials. Such as paper, plastic model metal film.
Can be increased according to demand覆膜、烘道等功能，还可定制更大涂布尺寸。可选刮刀、辊涂等多种不同功能。
Model |
JTM-300 |
coating method |
continuous scratch coating |
Effective application width |
≤ 300mm, adjustable through baffle |
coating method |
roller painting |
Drawdown blade diameter |
Ф50mm |
Spreader thickness range |
0.01mm~2mm |
Minimum gluing thickness |
0.01Mm (Depending on Stock, Reference Material Requirements) |
Coating surface density |
≤ +/- 1.5% (including substrate, excluding edge anomalies) |
coating speed |
2~ 4.5M/min forward and reverse stepless transmission |
Film accuracy |
+/- 0.003Mm (Depending on Stock, Reference Material Requirements) |
Regulator resolution |
0.001mm |
Indication Display mode |
digital display |
Heating device |
Chute heating |
Heating mode |
Heating rod |
Temperature range |
RT+~200°C |
box volume |
About 0.5L |
Width of guide roller |
300mm |
substrate width |
Max.300mm |
Back roller diameter |
Ф150mm |
Reel diameter |
3 inches. |
rewinding diameter |
Max.Ф450mm |
Applicable materials |
hot-melt adhesive |
Machine Power |
1050W |
Host power supply |
AC220V (single phase) 50Hz |
Machine size |
1051*635*600mm |
Machine weight |
About 120kg |

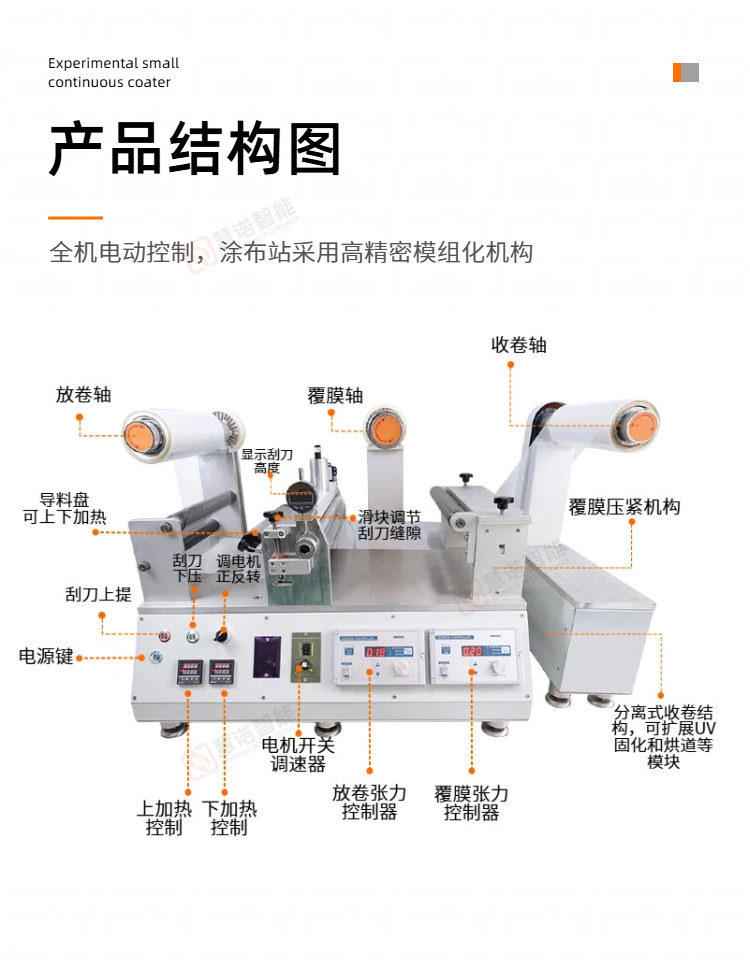

(1) The whole machine is a High Accuracy Modular Spreader Station structure, using Modular assembly.

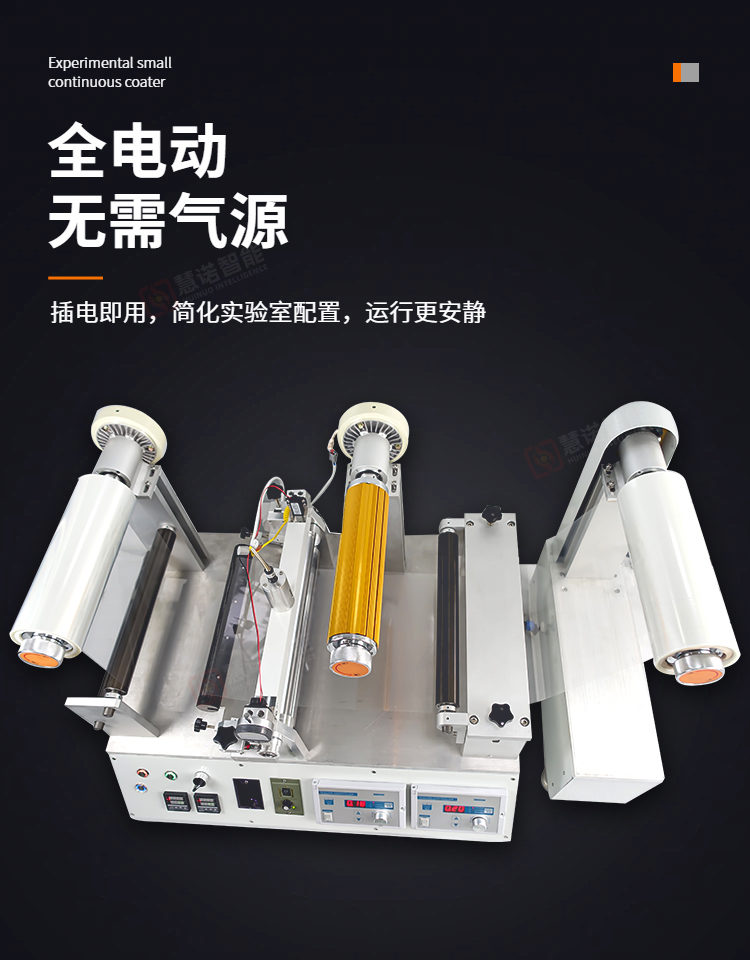

(2) All-electric control, no external air source required
(3) Use the dial meter as the indexing head to precisely fine-tune the Spreader clearance of the upper and lower rubber wheels to control the Spreader thickness.
(4) The minimum gluing thickness is 0.01mm. After the thickness is set, the downforce provided by the electric push rod prevents the gap from changing
(5) The maximum Spreader width is 300mm (effective application width 280mm). The width is adjusted by two PEEK baffles in the plastic slot. Unlimited length Spreader can be glued and automatically rewound.

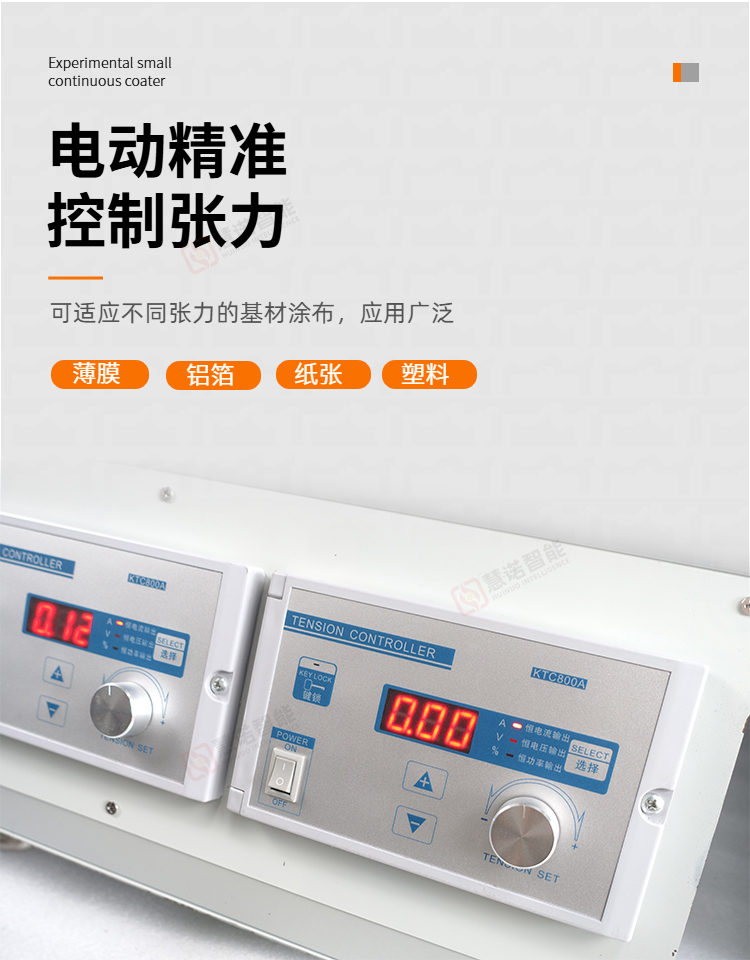

Spreader speed: 4.5m/min (speed 2-4.5 m/min adjustable), precision electronically controlled discharge reel can adjust the knob of the control panel, accurately change the discharge tension, and continue to maintain.
(7) Quick-release rubber groove, the upper rubber wheel and the rubber groove can be quickly disassembled and separated from the body to remove the residual glue.
Hot-melt adhesive, gel, hydrocolloid dressing, water-based glue, solvent glue, etc
