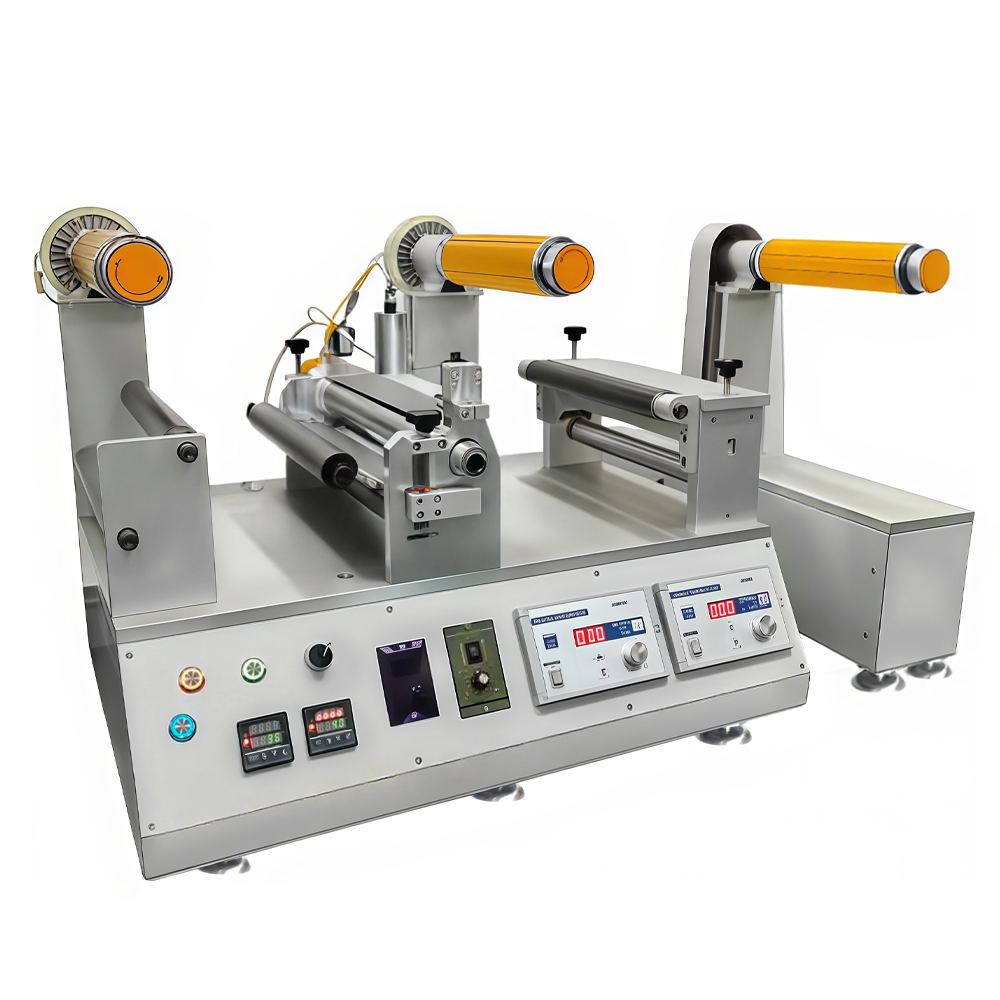

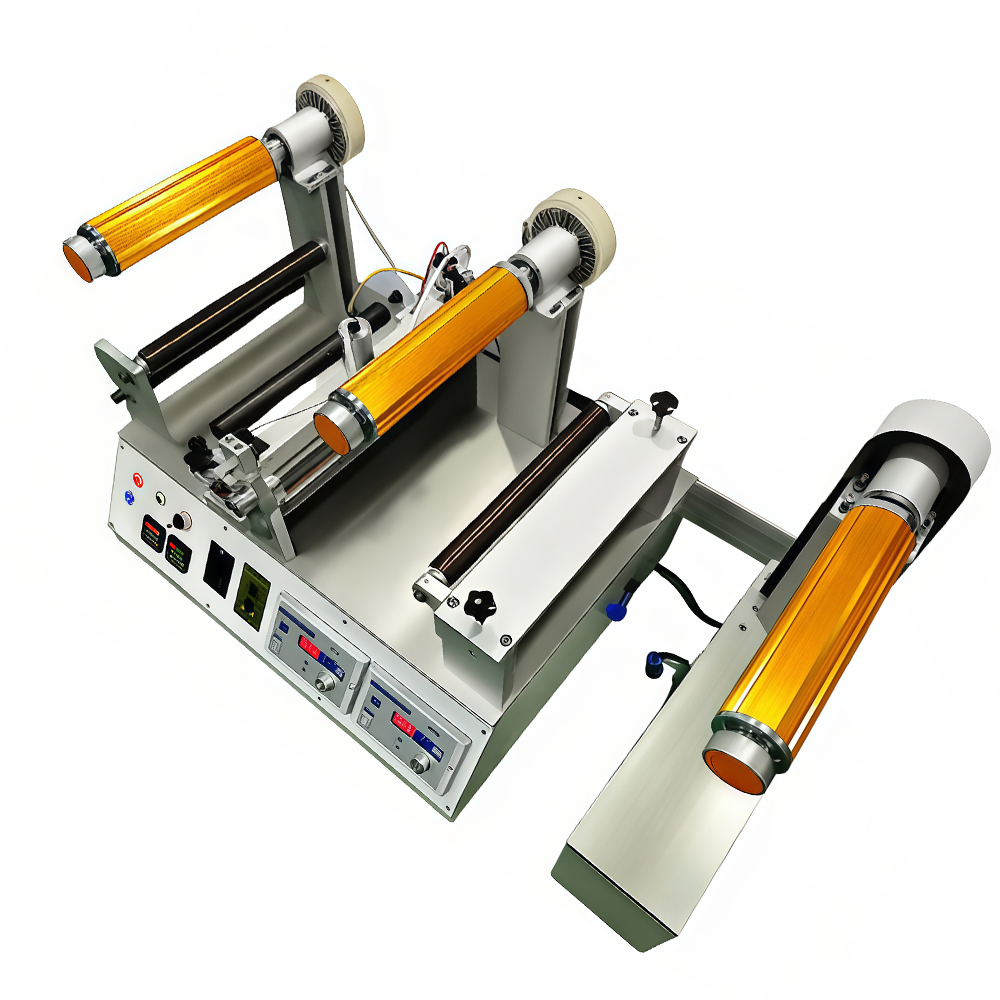

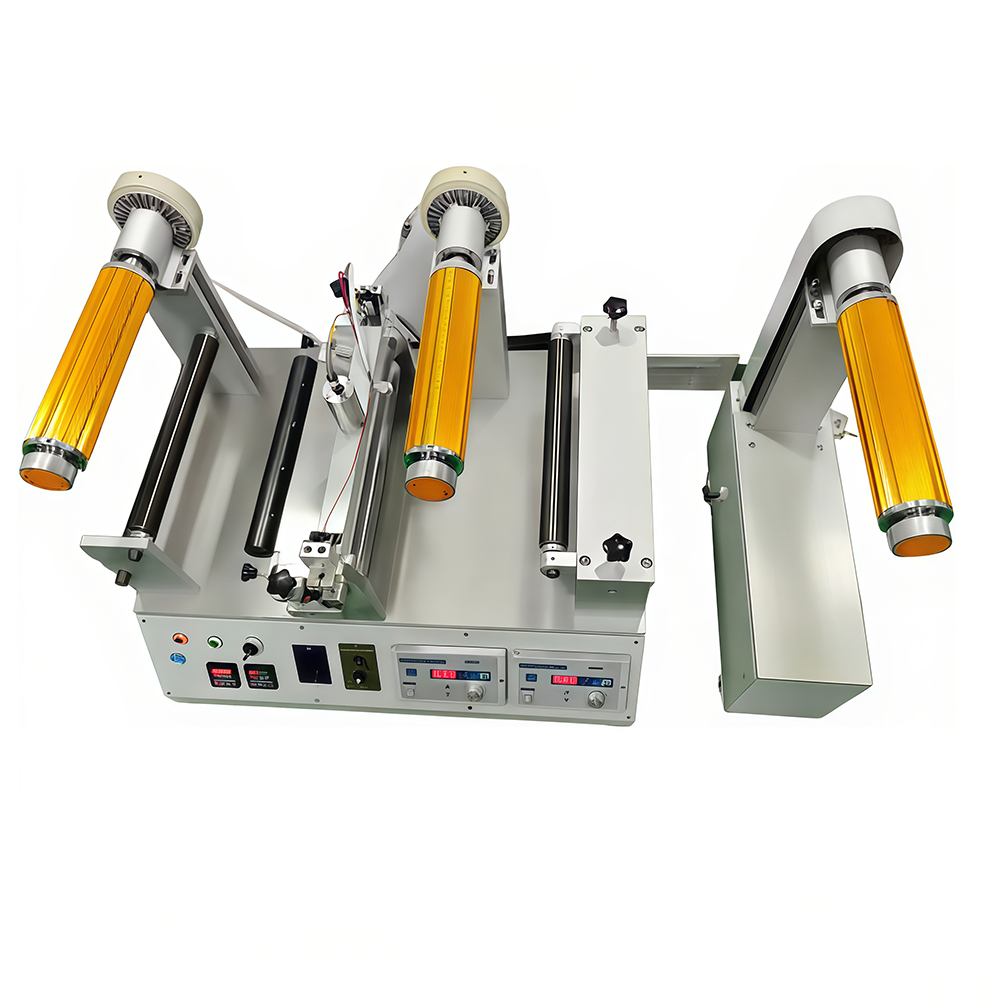

HuiNuo JTM-300 Small continuous coater Roll-to-roll Film Applicator No external air source required

Introduction

The continuous hot melt adhesive coating experimental machine is a modular assembly of high-precision modular coating station mechanism, with a separable winding module, which can be added as needed, and the whole machine is fully electrically controlled, without the need for an external air source. Continuous coating proofing or low-volume production of laboratory mini hot melt adhesive coaters. The hot melt pressure-sensitive adhesive can be directly applied to the heat-resistant substrate, or coated on the release paper and then the film transfer map can be applied to different surface materials, or the single-sided coating film of the curing module can also be added. Electronically controlled precision tension control, which can adapt to the needs of different materials. Such as paper, plastic model, metal film, etc.

Configuration brief

(1) The whole machine is a high-precision modular coating station structure, which adopts modular assembly.

(2) Fully electric control, no external air supply required

(3) Use the dial indicator as the index head to accurately fine-tune the coating gap between the upper and lower rubber wheels to control the coating thickness.

(4) The minimum gluing thickness is0.01mm。 After the thickness is set, the downforce is provided by the electric actuator to prevent the gap from changing

(5) The maximum coating width is 300mm (effective coating width is 280mm). The width is adjusted by two pieces of PEEK baffles in the rubber groove. It can be coated and glued for unlimited length, and is automatically rewound.

(6) Forward and reverse stepless variable speed, coating speed: 4.5m/min (speed 2-4.5m/min adjustable), precision electronically controlled discharge reel can adjust the knob of the control panel, accurately change the discharge tension, and keep it continuously.

(7) Quick-release glue tank, the glue wheel and the rubber groove can be quickly disassembled and separated from the machine body to remove the residual glue.
